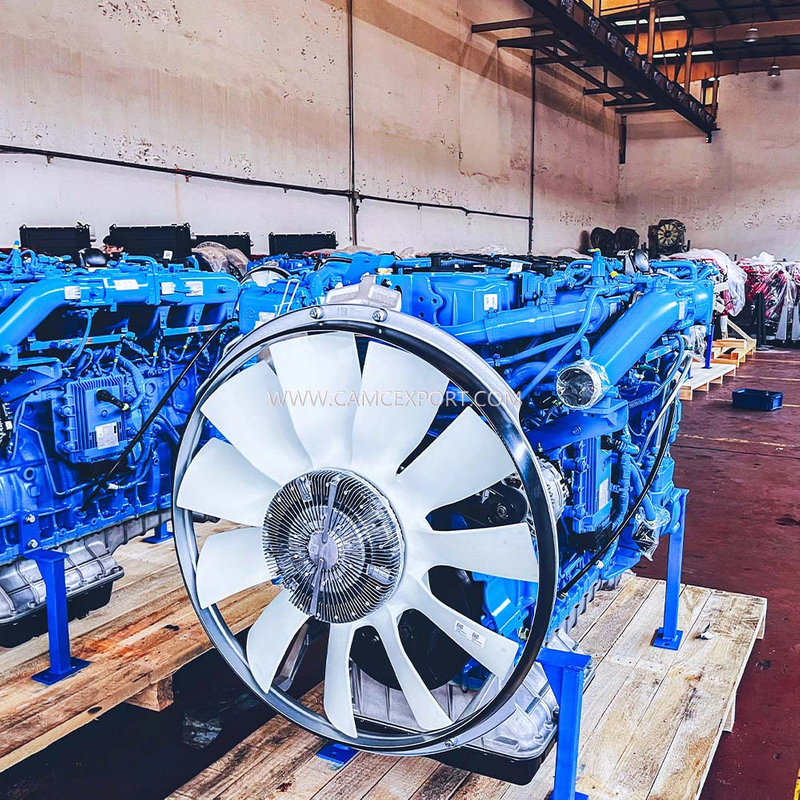

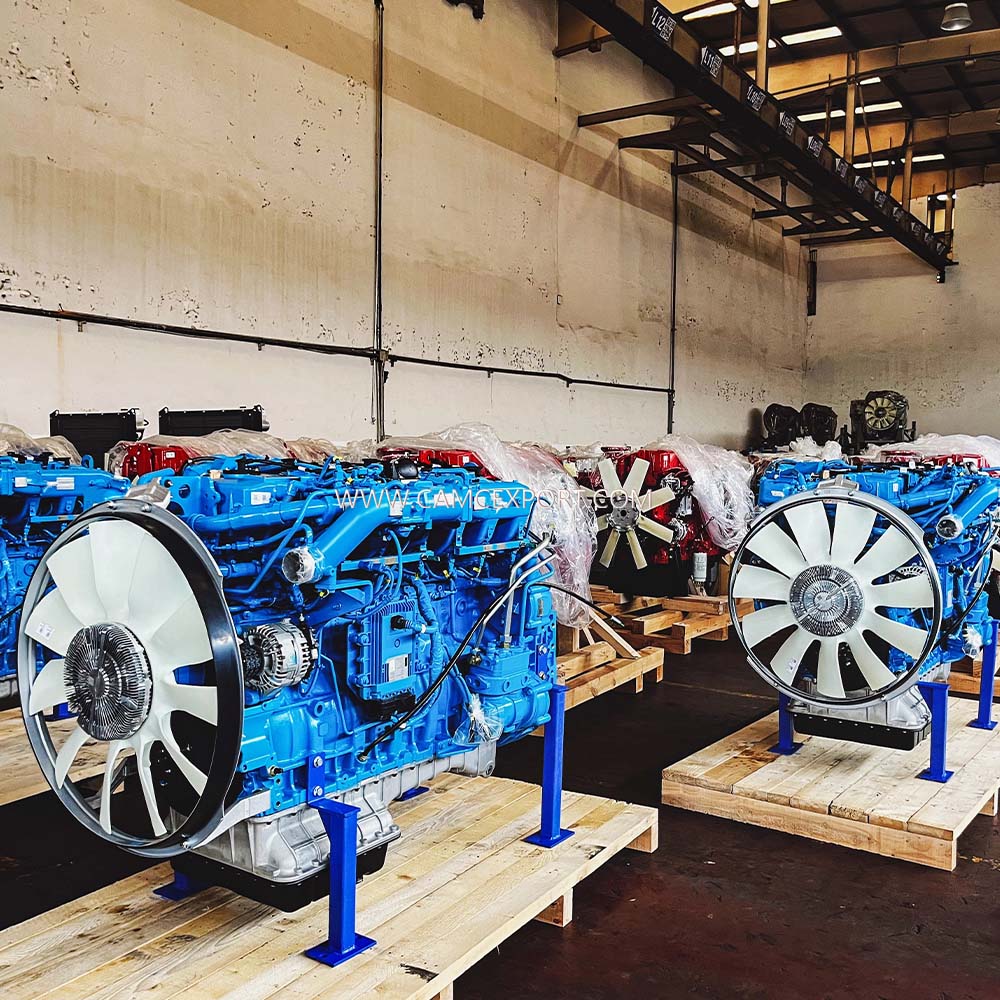

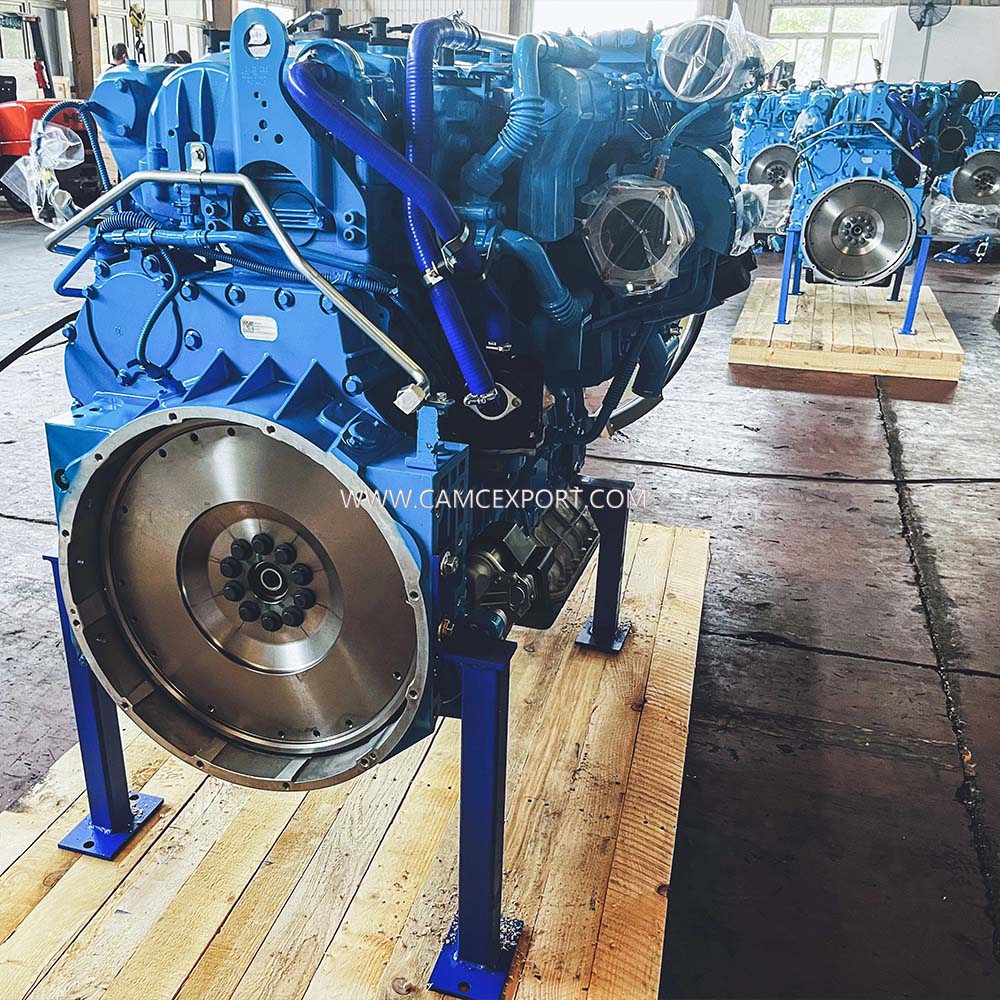

Methanol off-road GS13M series engine uses M100 methanol clean energy and adopts a number of advanced technologies such as intake charge intercooling, theoretical air-fuel ratio closed-loop control and cooling EGR system, which create the excellent performance of this engine with high performance, low fuel consumption, high reliability and low ernission.
High perlormance: Adopting high compression ratio, high energy ignition, high rolling flow combustionchamber structure, as well as optimizing air duct and timing mechanism, adopting intake boost intercooling andother technologies to make combustion more efficient and power more powerful;
Low fuel consumption: Adopt theoretical air-fuel ratio closed-loop control, multi-point fuel injection and otheradvanced technologies to optimize combustion, so that the engine has more excellent fuel economy, low cost ofuse and high cost perforrmance;
High reliability: We insist on the development concept of high quality, and consider the technical route, CAE analysis and test verification from many aspects to make the product quality reliable.
Ultra-low emission: Methanol is a recognized clean energy source, cormpared with conventional fuels such asgasoline and diesel, methanol burns more fully and completely, and its ermissions of CO, HC and NOx drop significantly, and there are almost no particulate emissions. Meanwhile, with the application of cooling EGP system, the whole engine emission can reach the off-road national stage Ⅳ emission standard.
| Engine model | GS13PM series |
| Engine arrangement type | In-line, four-stroke, liquid-cooled, supercharged intercooled |
| Type of fuel | M100 Methanol |
| Cylinder | 6 |
| Cylinder Bore x Stroke（mm） | 133*164 |
| Compression ratio | 12.5：1 |
| Engine displacement(L) | 13.67 |
Maximum power/Maximum speed | 375/1800 |
| Maximum torque/Maximum speed | 2500/950-1400 |
| Electronic control system | Multi-point jet electronic control system |
| Idle speed(r/min) | 600±50 |
| Minimum fuel consumption rate | ≤420（g/KWh） |
| the life of the B10 engines（km） | 1 million |
Our FactoryCAMC is specialized in different kinds of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishmet of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with an irresistible force.
Q:Do you have ISO certificate?
A:Yes , we have. Please contact us to get our certificates.
Q:How about the delivery time?
A: Most of our trucks have stock and we can deliver to you within 7 days. If specially ordered, normally we need around 30 days for production.
Q: What is the warranty?
A:Two years or 5 thousand hours. We offer all spare parts free of charge during warranty period. After this period, spare parts are not free. What's more, a set of spare parts will be shipped together with engine and generator set free of charge.
Q:How to choose the right model?
A:It depends on continuous output power, Voltage, Frequency and fuel type.
Q: How many engines does your factory produce every year?
A:Almost 100000 units. Nearly 8500 units per month.
Q:How is the after sale service and maintenance ?
A : We offer installation, repair and maintain service abroad. And online quide service if needed anytime. Our before-sale, in-sale and after-sale service are all trustable, you can name it.
Q: How do you control the quality of product?
A:Our Factory has standard production workshop, gets ISO CCC BV certificates, our workers are well trained. Every unit of product undergoes a rigorous inspection process.
Q: How about your product after-sales service system?
A:Our main export countries have accepted after-sales service, some countries use the third party service.
Q: Do you accept custom order? What's is your MOQ order?
A:Yes, we do. Our MOQ is 1 unit.
Q: What's the payment terms?
A:By T/T or L/C at sight.
Q: How about shipment?
A:20FT container, 40FT container, 40FT high container, open-top container, flat bed container, Ro-Ro ship or bulk
ship according to the size the products.
Q:Which country do you have exported to?
A:We have exported to More than 60 countries and regions in Eastern Europe, North Africa, Southeast Asia and South America.
