| Quantity: | |
|---|---|
19.5(H) × 9.5(W) × 5.5(D) cm
CAMC

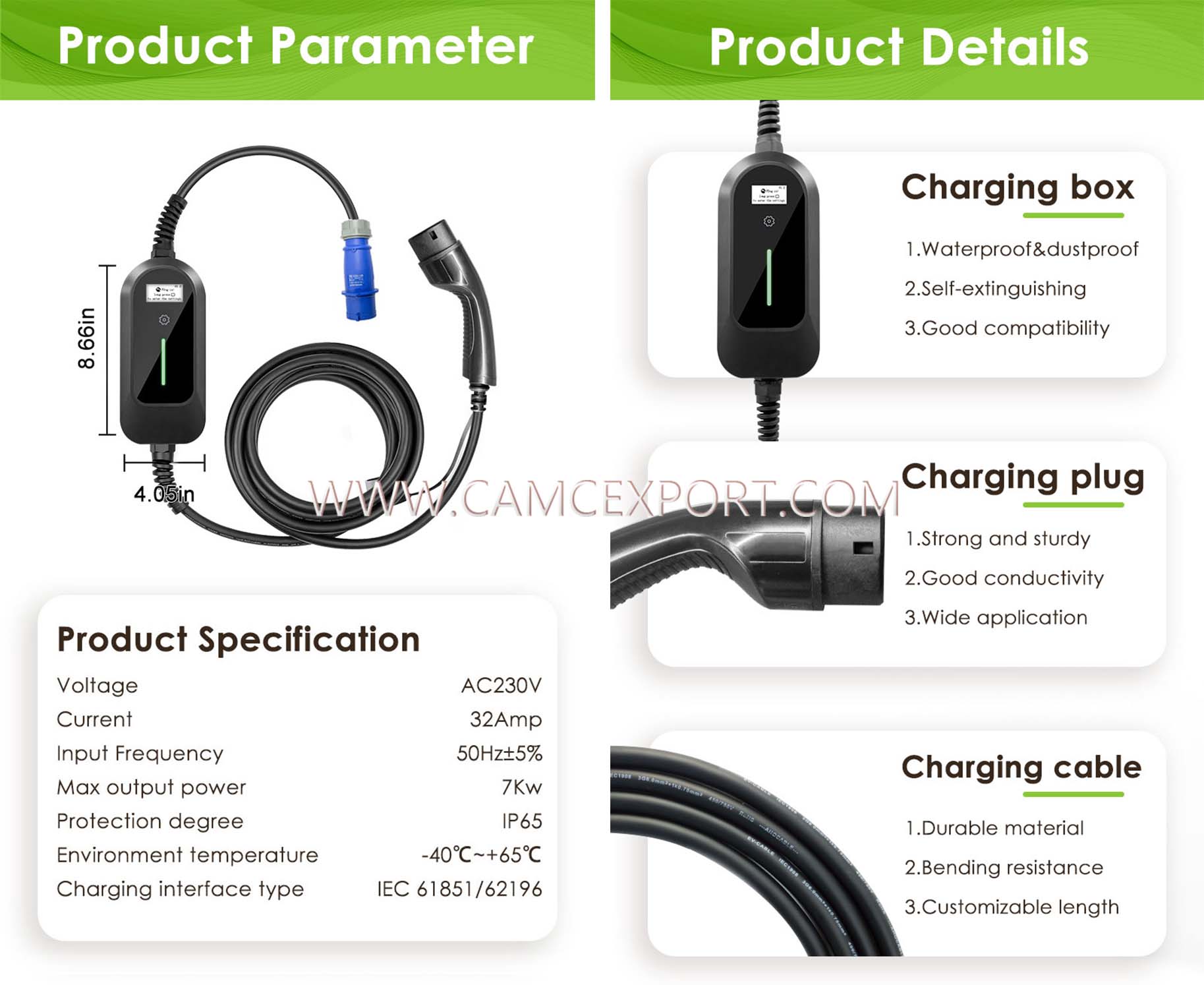

Dimension | 195(H) × 95(W) × 55(D)mm |

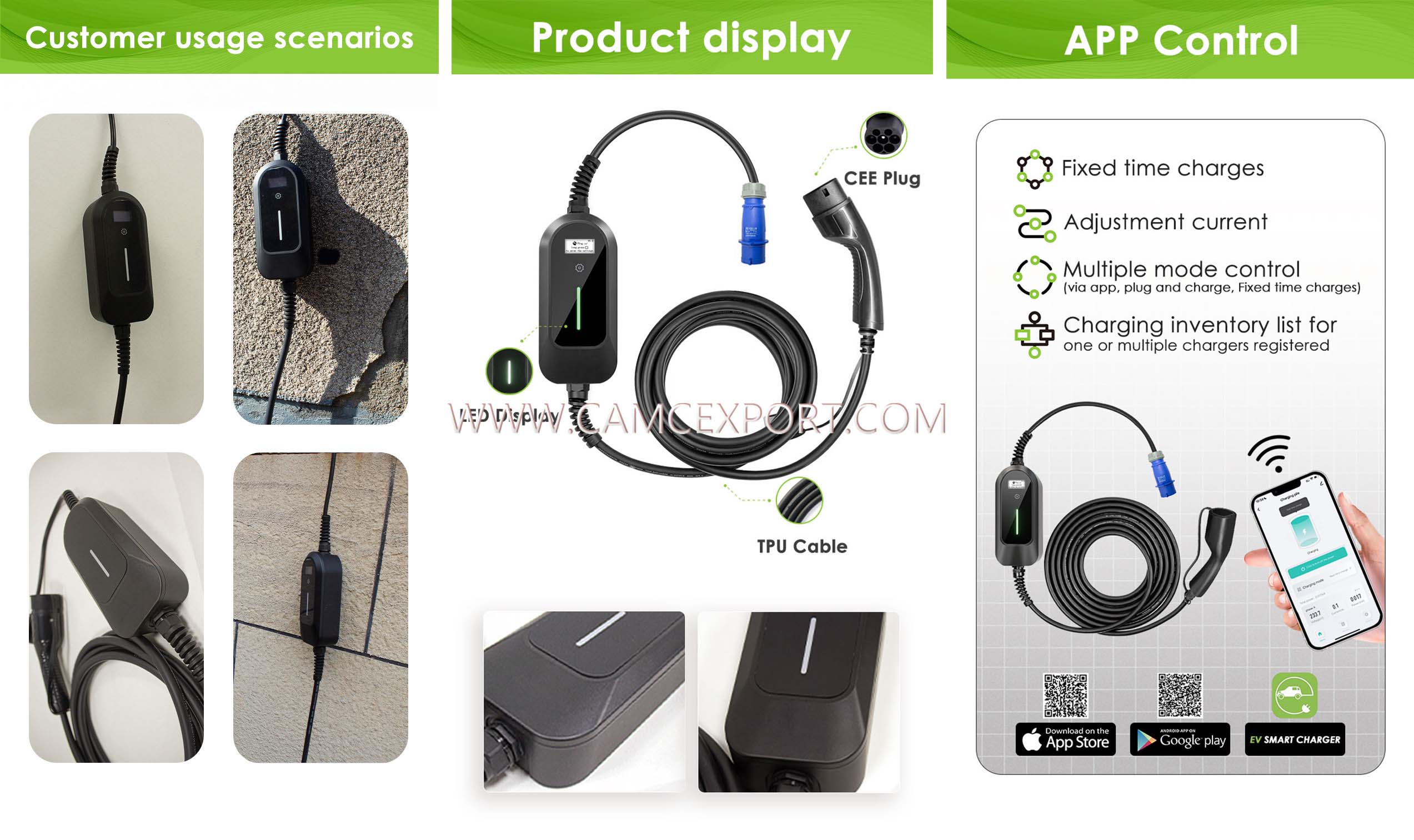

User Interface | 1.3 inch OLED Display with 4*LED Indicator light |
Cable length | 5m standard, 10m or other size customizable |
Weight | 2.4kg (Including charging gun) |
Input voltage | 220V |
Frequency | 45-65Hz |

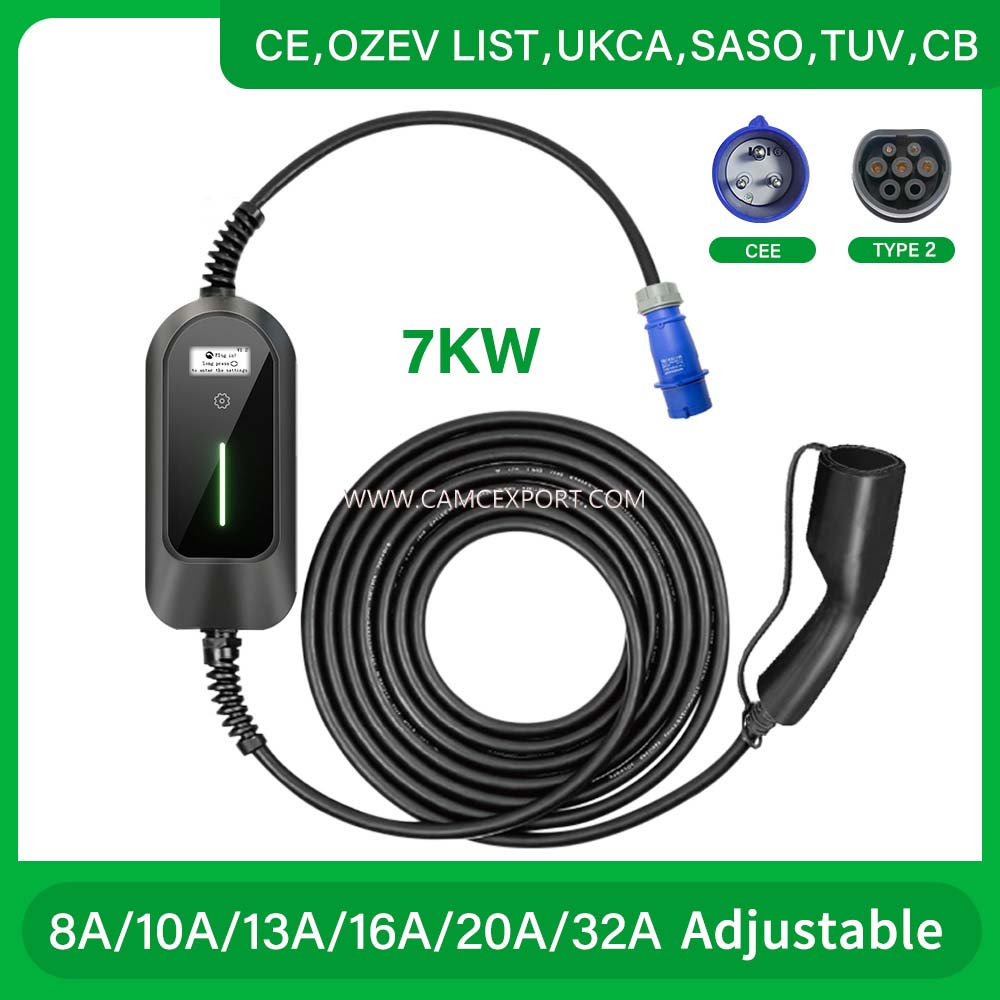

Power rating | 7KW |
Measurement accuracy | Grade 1.0 on-board |
Output voltage | AC220V±20% |
Output current | 32A |
Standby power | ≤1W |
Power supply interface | Industriall waterproof plug |
Charging interface | IEC 61851 |
Design standard | SAE J1772、IEC 20234、GB/T 20234.1、GB/T 20234.2GB/T 18487.1、NB/T 42077 |
Protection | Overvoltage protection,undervoltage protection,overload protection, short circuit protection, grounding protection, type Aleakage protection,llightning/surge protection, reverse connection protection,adhesion detection, over temperature protection |
EMC Level | EMS automotive electronics standards,EMl Class B limit |
Working temperature | -40-+65℃ |
Working Humidity | 5%-95% no condensation |
Working altitude | ≤4000m |
Flame retardant properties | UL94-V0 |
IP grade | ≥IP65 |
Cooling mode | Natural cooling |
Applicable | Indoor/Outdoor，No conductive dust, no corrosive gas, no explosive gas, no strong vibration |
Special protection | Anti- Uv design, anti-vehicle rolling design |
MTBF | ≥100000H |
Plug temperature control | Standard |
CAMC International Trading Co., Ltd.is a branch company of CAMC, mainly in charge of overseas marketing. CAMC is the national priority production and research development base of heavy trucks, special purpose heavy vehicles and spare parts, which is also the state mainly supports enterprise. located in Maanshan Economic and Technology Development Zone, Anhui, China, CAMC was found in 1970s and we are the only truck enterprise in China which is capable of producing everything on our own including engine, gearbox, axles, chassis, cabin and so on.
Our company is specialized in different kinds of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with an irresistible force.
For years, CAMC has been doing good and professional work in commercial vehicles. Our product covers a huge scope in this field, like tractor truck, dump truck, concrete mixers, pump truck, cargo truck, garbage truck, crane truck, bulk cement truck, tank-carrying truck, semitrailers and other special vehicles along with different driving form such as 4X2, 6X2, 6X4, 8X4, 10X4. The emission standard covers a range from EURO 2 to EURO 6.
Besides,we are convinced that high-quality, systematic, comprehensive and efficient service are the foundation of our career development. With the goal of creating a domestic first-class service enterprise with strict management and advanced technology, we have formulated a "standardized management system, strict process control, guaranteed product management, and quality policy of customer satisfaction, adhered to the far side of customer first, and built good sales and series system, providing customers with “high-quality pre-sale, in-sale and after-sale services”.
Q:why should you buy from us not from other suppliers?
A:CAMC was found in 1970s and we are the only truck enterprise in China which is capable of producing everything by our own including engine, gearbox, axles, chassis, cabin and so on.
Q:Do you accept custom order? What's is your MOQ order?
A:Yes, we do. Our MOQ is 1 unit.
Q:How about your product after-sales service system?
A:Our main export countries have accepted after-sales service, some countries use the third party service.
Q:How about the delivery time?
A:Normally we need around 25 days for production.
Q:Are there other types and series of charging piles?
A:We have a full-scene, full-category charging pile product system, such as H series AC charging piles, X series AC charging piles, L series DC charging piles, T series AC charging piles, etc., to meet your diverse needs.
Q:How long is the warranty？
A:Warranty 1 year. If you need to increase the warranty: 3% in the second year, 4% in the third year, 5% in the fourth year, and 8% in the fifth year.
